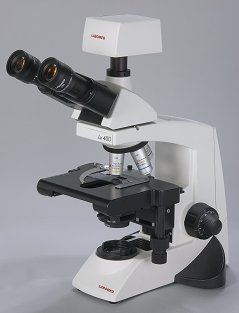

Digital Bilogical Compound Microscopes are like any other Microscopes, but they have builtin camera with high resolution and the image can directly can be seen on the LCD display. The image can be transferred to computer direcly.

These microscopes are used for Tele Pathology applications also. We are the authorized supplier of Digital USB Camera for Microscopes based in Kolkata, West Bengal, India.

These USB Camera thats builtin with the microscope give a high quality image that can be saved and transmitted via Email.

For further query Please send us your request.

                                                 SEND YOUR QUERY

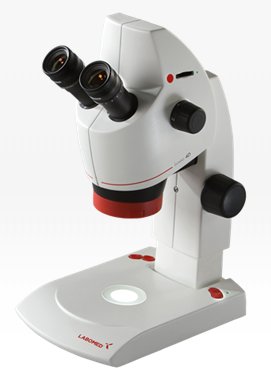

                                                                                                                                                                                                                   Digital Stereo Microscopes are used for study of large objects with Three Dimension perception, The image is clear and have depth perception, Used mainly in Metallurgical sample observatins, Zoology departments, Botany departments, GEM testing, and many more. These microscope have application in low magnification like 5x to 300x.

The Images captured can be directly transfered to computer and can be used for further analysis, measumements and printing reports. One can directly observe the live image on computer screen or Video monitor.

For more informations SEND  YOUR QUERY  to us

VISION Upright Trinocular Metallurgical Microscope
 MODEL- VCXLT

Metallurgical Microscope for Metal surface analysis , Measurement of Grain size, Capturing Images for report making, etc.

Specifications :

Type: Upright Metallurgical Microscope

Observation Head : 30º Inclined  360 º rotatable Trinocular

Eyepiece: WF10X /18 mm Pair, WF10X/18mm with cross line

Objectives: Semi Plan Achromatic 4X, 10X, 40X (SL)

Total Magnification: 40X to 400X

Illumination: Reflected light. Halogen Lamp 6Volts/20Watts with intensity control, iris diaphragm & slots for dropping filters with two filters green,  daylight blue

Focusing System: Coaxial Coarse & Fine focusing based on a 4 stage gear reduction system traveling on ball bearing guides.

Mechanical Stage: Doubled layered Size 180 X150 mm, low drive co-axial stage having both X & Y axes

Power supply : 230VAC, 50Hz.

USB Microscope Camera :  VISION  2 MP USB High Resolution CCD CMOS Digital Microscope Camera with Photo lens, Microscope adapter , Capture software

Special Metallurgical Image analysis software for Analysis for Grain size ASTM122, Decarburization ASTM1077, Coating thickness ASTM276, Count, Phase analysis ASTM562, Particle size, Measurement of length, area, angle, perimeter, Calibration, Report Making

                                                                                             SEND  YOUR  QUERY
