OPTIKA, Italy - Inverted Metallurgical Microscope

Observation Head : Trinocular Head
Type: Inverted Metallurgical Microscope
Illumination: LED with intensity control, iris diaphragm & slots for  dropping  filters with two coloured filters green,  daylight blue
Eyepiece: WF10X Paired
Objectives: Achromatic  4X, 10X & 50X (SL)
Total Magnification: 40X, 100x & 500X
Nosepiece: 4 hole Nosepiece (Ball Bearing)
Focusing System: Co- axial Coarse & Fine focusing .
Mechanical Stage:  low drive co-axial stage  having both X & Y axes
                                                             Trinocular Head available for Microphotography.
               SEND  YOUR   QUERY            Polarizing Filters .

Special Metallurgical Image analysis software for Analysis of  Grain size ASTM122, Decarburization ASTM1077, Coating thickness ASTM276, Count, Phase analysis ASTM562, Particle size, Measurement of length, area, angle, perimeter, Calibration, Report Making

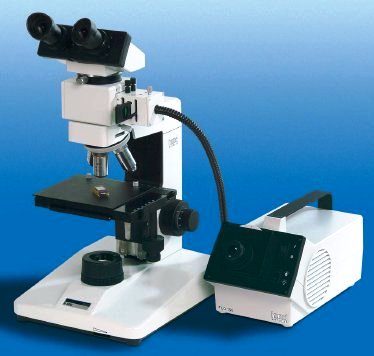

Dedicated to industrial quality control incident light for investigation of metals , ceramics and composite materials. Tramitted light for transparent or powders. Available as incident light or incident/transmitted light version . Wide range of long working distance objectives.

Optics: High Resolution

Illumination: Halogen Lamp 12Volts/50Watts or 12V/100W with intensity control, iris diaphragm & slots for dropping filters with two coloured filters green,  daylight blue

Total Magnification: 40X to 750X,  Co- axial Coarse & Fine focusing based on a 4 stage gear reduction system traveling on ball bearing guides. Separate Photo tube with Trinocular head

                                           VISION Upright Monocular Metallurgical Microscope  MODEL - VCXLM
Economic Metallurgical Microscope for Metal surface analysis , Measurement of Grain size, Capturing Images for report making, etc.

Type: Upright Metallurgical Microscope
Observation Head : 30º Inclined  360 º rotatable Monocular
Eyepiece: WF10X /18 mm Pair, WF10X/18mm with cross line
Objectives: Semi Plan Achromatic 4X, 10X, 40X (SL)
Total Magnification: 40X to 400X
Illumination: Reflected light. Halogen Lamp 6Volts/20Watts with intensity control, iris diaphragm & slots for dropping filters with two filters green,  daylight blue
Focusing System: Coaxial Coarse & Fine focusing based on a 4 stage gear reduction system traveling on ball bearing guides.
Mechanical Stage: Doubled layered Size 180 X150 mm, low drive co-axial stage having both X & Y axes  , Power supply : 230VAC, 50Hz.

VISION Inverted Metallurgical Microscope MODEL- VMT- 23B

 Observation Head : Binocular Head
Type: Inverted Metallurgical Microscope
Illumination: Halogen Lamp 12Volts/50Watts with intensity control, iris diaphragm & slots for
dropping  filters with two coloured filters green,  daylight blue
Eyepiece: WF10X Paired
Objectives: Achromatic  4X, 10X & 40X (SL)
Total Magnification: 40X, 100x & 400X
Nosepiece: 4 hole Nosepiece (Ball Bearing)
Focusing System: Co- axial Coarse & Fine focusing based on a 4 stage gear reduction system traveling on ball bearing guides.
Mechanical Stage: Size 120 X120 mm, low drive co-axial stage having both X & Y axes Trinocular Head also available for Microphotography.

We are Authorized Distributor for METAVIS Metallurgical Image Analysis Software.

The MetImage LX is an Image Analysis Software which enables you to analyze images captured from microscopes to obtain specific measurements that include caliper measurements such as length, areas and distances and counting and classifying objects, particle sizing, particle spacing.

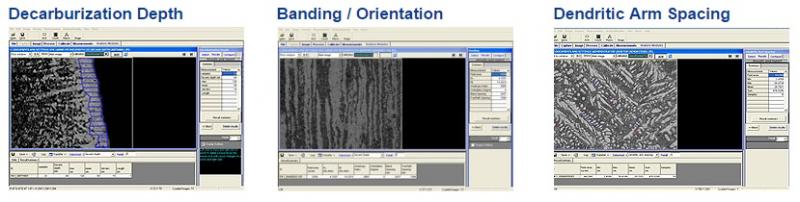

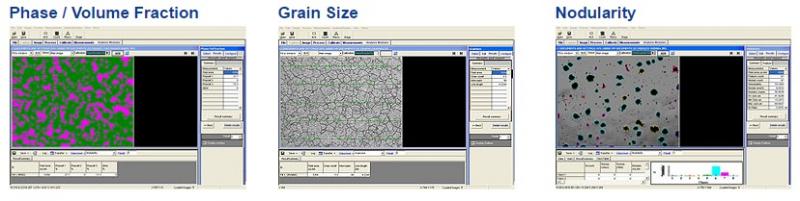

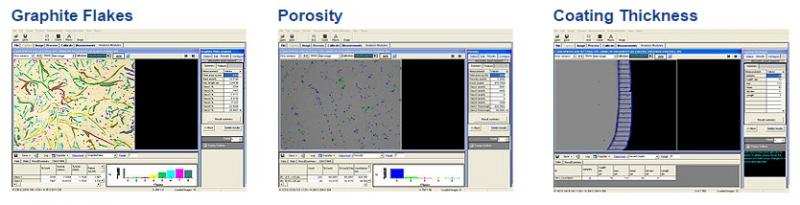

Advanced measurement modules include Grain size, Phase / Volume fraction, Inclusion analysis, Nodularity measurements, Graphite Flake measurements, Porosity, Carbide Banding and Dendritic Arm Spacing.
